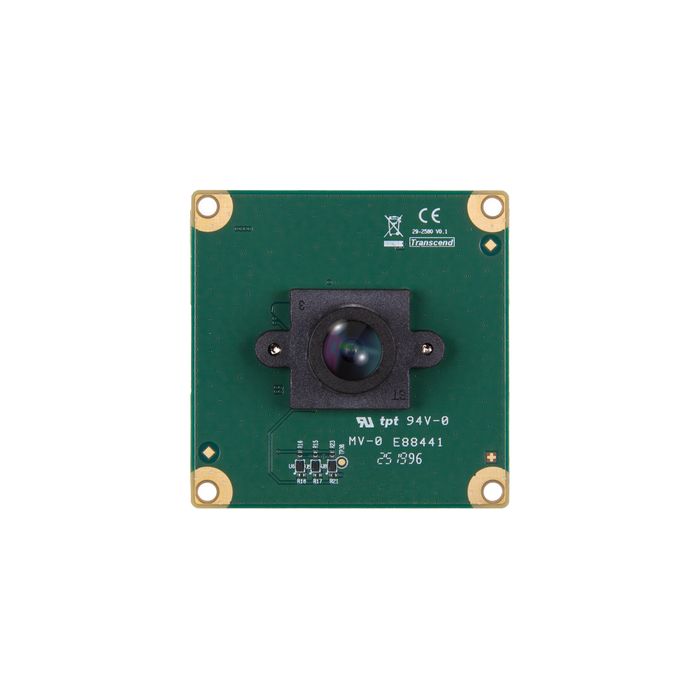

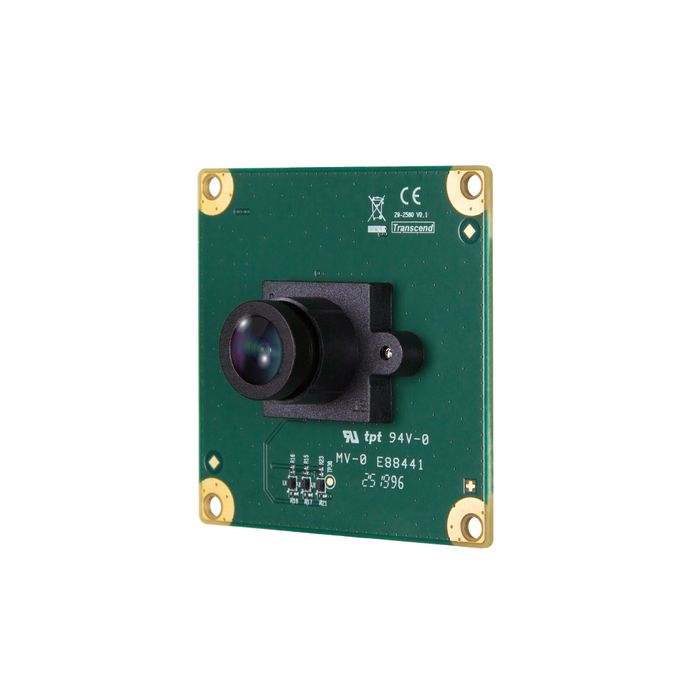

Designed for embedded systems and intelligent applications, Transcend’s industrial-grade ECM100 Embedded Camera Module is equipped with the high-sensitivity CMOS sensor. It delivers 2MP resolution and a 130° field of view, producing sharp, low-noise images even in low-light environments. Supporting the MIPI CSI-2 interface, the ECM100 can be seamlessly integrated into various embedded platforms, including AI edge computing, industrial inspection, and robotic systems.

With an operating temperature range of -30°C to 70°C and a robust, vibration-resistant design, the ECM100 ensures reliable performance in harsh environments. Flexible customization options accommodate diverse project requirements, providing your system with high reliability and long-term supply assurance.

Firmware Features

• Customize image parameters in the driver to ensure image quality meets customer requirements.
• Provide ISP (Image Signal Processor) tools, allowing customers to fine-tune image parameters themselves and achieve optimal results in various shooting environments.
• Auto Exposure Control (AEC) and Auto White Balance (AWB) provide quick and accurate adjustments for optimal image brightness and color fidelity.

Hardware Features

• An integrated HDR (High Dynamic Range) function ensures clear and well-balanced images even in scenes with extreme contrast.
• A 2.8 µm pixel size enables enhanced light sensitivity and superior image quality in various lighting conditions.
• Support high frame rate, delivering smooth and detailed video capture for fast-moving subjects.
• Its low power consumption design makes it ideal for battery-powered or energy-sensitive applications.
• The module offers horizontal and vertical mirroring, allowing flexible image orientation to suit different installation requirements.
